Hybrid Capacitors
A Combination of Liquid Electrolyte and Polymer
Aluminum electrolytic hybrid capacitors achieve improved electrical characteristics at compact dimensions, due to the combination of liquid electrolyte and polymer. Thus, they provide the advantages of e-caps (e.g. a higher rated voltage) and those of polymer caps (e.g. high ripple current capability/extremely low ESR) in one product.
Hybrid capacitors are the focus product of several manufacturers. More and more applications, especially in the automotive industry, are realized with such capacitors due to the outstanding features and advantages of this technology. Thus those products are steadily further developed and the parameters continuously improved. Our suppliers partly are looking back on many years of experience in developing this technology.
Samples Contacts NewsAdvantages Compared to Al-Electrolytic Caps
- High ripple current capability in compact case sizes
- Low and over the entire temperature range stable ESR
- Long life time
Advantages Compared to Pure Polymer Caps
- Higher voltage/capacitance values
- A lower leakage current
- A general AEC-Q200 certification
- In case of a failure, they don't generate a short circuit
With our manufacturers PANASONIC, RUBYCON and SUN the product portfolio of CODICO provides a wide selection of hybrid capacitors with different specifications. In case of any questions please contact CODICO's product manager!
Manufacturers & Contacts
PANASONIC
PANASONIC is a big Japanese manufacturer with different business areas like automotive with multi-media products, Manufacturing with electronic components mounting systems or industrial robots and finally the Industrial Business Group with electronic components. CODICO's main focus is on polymer and hybrid capacitors, metal alloy inductors and precision and measurement resistors.
Infos Samples
RUBYCON
RUBYCON is one of the worldwide leading Japanese manufacturers of aluminium electrolytic capacitors. The company is market leader in long life e-caps and very strong in high performance e-caps with high ripple current/low impedance and continuous miniaturization.
Infos Samples
SUNCON
SUN is a Japanese manufacturer of high-quality aluminum electrolytic and hybrid capacitors with more than 60 years of experience in development and production. In 2000, the company introduced the world's first polymer hybrid electrolytic capacitor to the market, which offers major advantages over conventional electrolytic capacitors.
Infos Samples
YAGEO-KEMET
YAGEO-KEMET is one of the leading manufacturers of tantalum, polymer and film capacitors, but also offers special leakage current sensors for industry and automotive charging technology. The product portfolio additionally covers ceramic, aluminum electrolytic and double layer capacitors as well as inductors. The main focus of CODICO is on the film capacitors and leakage current sensors.
Infos Samples
-
![panasonic_hybrid_6_3x7_7_1]()

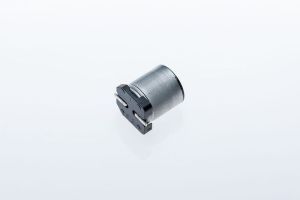

Hybrid Capacitors EEHZA1E101XPRated Voltage: 25V
Capacitance: 100µF
Rated Ripple Current @100kHz: 2000mA rms
Impedance/ESR: 0,03Ω
Free Sample
-
![panasonic_hybrid_10x10_2_1]()
Hybrid Capacitors EEHZA1V271PRated Voltage: 35V
Capacitance: 270µF
Rated Ripple Current @100kHz: 2500mA rms
Impedance/ESR: 0,02Ω
Free Sample
-
![EEHZC1J220XP]()
Hybrid Capacitors EEHZC1J220XPRated Voltage: 63V
Capacitance: 22µF
Rated Ripple Current @100kHz: 900mA rms
Impedance/ESR: 0,08Ω
Free Sample
-
![panasonic_hybrid_6_3x5_8_1]()

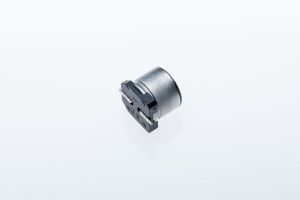

Hybrid Capacitors EEHZA1V470PRated Voltage: 35V
Capacitance: 47µF
Rated Ripple Current @100kHz: 1300mA rms
Impedance/ESR: 0,06Ω
Free Sample
-
![EEHZA1V680XP]()
Hybrid Capacitors EEHZA1V680XPRated Voltage: 35V
Capacitance: 68µF
Rated Ripple Current @100kHz: 2000mA rms
Impedance/ESR: 0,035Ω
Free Sample
-
![EEHZC1H100R]()
Hybrid Capacitors EEHZC1H100RRated Voltage: 50V
Capacitance: 10µF
Rated Ripple Current @100kHz: 500mA rms
Impedance/ESR: 0,12Ω
Free Sample
-
![EEHZA1H101P]()
Hybrid Capacitors EEHZA1H101PRated Voltage: 50V
Capacitance: 100µF
Rated Ripple Current @100kHz: 2000mA rms
Impedance/ESR: 0,028Ω
Free Sample
-
![panasonic_hybrid_8x10_2_1]()

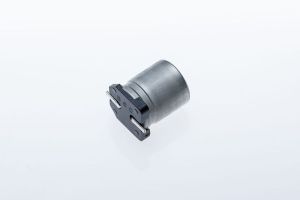

Hybrid Capacitors EEHZA1E221PRated Voltage: 25V
Capacitance: 220µF
Rated Ripple Current @100kHz: 2300mA rms
Impedance/ESR: 0,027Ω
Free Sample
-
![EEHZA1J560P]()

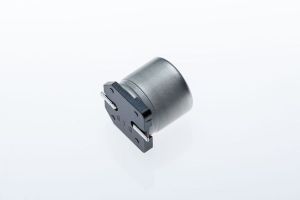

Hybrid Capacitors EEHZA1J560PRated Voltage: 63V
Capacitance: 56µF
Rated Ripple Current @100kHz: 1800mA rms
Impedance/ESR: 0,03Ω
Free Sample
-
![EEHZC1V470P]()
Hybrid Capacitors EEHZC1V470PRated Voltage: 35V
Capacitance: 47µF
Rated Ripple Current @100kHz: 900mA rms
Impedance/ESR: 0,06Ω
Free Sample
-
![EEHZC1J330P]()
Hybrid Capacitors EEHZC1J330PRated Voltage: 63V
Capacitance: 33µF
Rated Ripple Current @100kHz: 1100mA rms
Impedance/ESR: 0,04Ω
Free Sample
-
![EEHZC1J560P]()
Hybrid Capacitors EEHZC1J560PRated Voltage: 63V
Capacitance: 56µF
Rated Ripple Current @100kHz: 1400mA rms
Impedance/ESR: 0,03Ω
