HomePlug Green Phy for Charging Stations

How Is This Reduction Achieved?

This reduction in transmit power level is achieved by using a 1:1:1 signal transformer compared with the 1:5:4 that is typically used in mains applications. In addition transmit power level is further reduced by modifying the configuration file of the Green Phy Chips. As PLC nodes in charging stations are requested to have a different behaviour than the ones in the electro vehicles more modifications of the so called PIB-File (Parameter Information Block File) are required.

Choose Between ICs, Modules and Evaluation Boards

In the area of ISO/IEC 15118/ DIN 70121/ SAE J2847/2 communication CODICO offers both HomePlug Green Phy compliant ICs from QUALCOMM (QCA7000 and QCA7005) and supports embedded designs with these chips under certain circumstances.

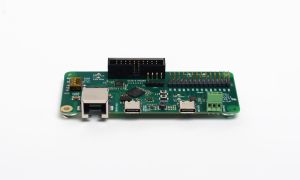

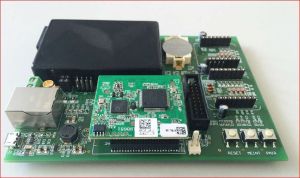

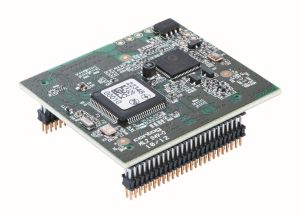

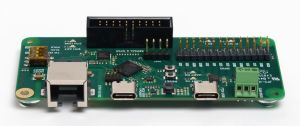

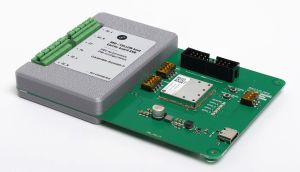

Beside the chips CODICO offers a a number of modules and evaluation boards based on these Chips where all necessary modifications and adaptions are already made.
