EEHZC1E330R

Name: EEHZC1E330R
SKU: 271862
Price: 1.00 EUR
Availability: InStock

Free Sample

Add to Compare

Availability

Deliverable in short time

More information about samples availability can be found here: Availability

125°C SMD Hybrid E-Cap ZC-series

Product Code: 271862
Weight: 0.38 g
Manufacturer: PANASONIC

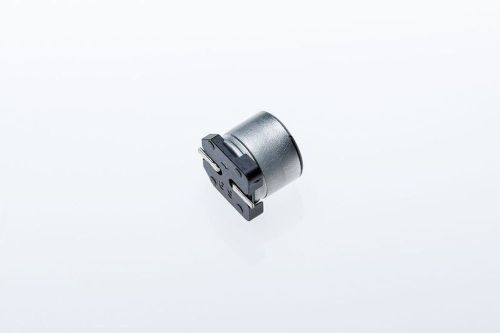

125°C SMD Aluminum-Polymer-Hybrid Electrolytic Capacitor EEHZC1E330R with 4.000h guaranteed life time, low ESR and high ripple current capability

Roland Trimmel +43 186 305-144 E-MAIL

CODICO GmbH +43 1 86305-0 E-Mail

Manufacturer: PANASONIC

Rated Voltage	25V
Capacitance	33µF
Capacitance Tolerance	+/-20 %
Rated Ripple Current @100kHz	550mA rms
Rated Ripple Current @120Hz	0mA rms
Impedance/ESR	0,08Ω
Maximum Category Temperature	125°C
Minimale Category Temperature	-55°C
Guaranteed Lifetime	4000h
Pin Type	SMD
Diameter	5mm
Height	5,8mm
Series	ZC
